High-Quality Wafer Check Valves from China: Reliable and Cost-Effective Flow Control Solutions
As for the industries that require highly accurate and effective systems in their pipelines, the wafer check valve is considered to be an indispensable item. Small utility and highly sturdy, wafer check valves come in handy to acting as part of many systems including oil and gas, water treatment, HVAC, as well as chemical systems. When it comes to wafer check valves, RUFSUPPLY is well established as one of the top wafer check valve manufacturers in China.
When you want to choose between wafer check valves and swing check valve or you are searching for a suitable flanged wafer check valves supplier in China or need to consider the how to install wafer check valve all the articles are here. Below is the resealable details on the characteristics, advantages, and why China is leading in the manufacture of wafer check valve .
Wafer Check Valve Specifications
| Feature | Description |
|---|---|
| Valve Type | Wafer Check Valve |
| Function | Prevents backflow by allowing fluid to flow in only one direction. |
| Body Material | Stainless Steel, Cast Iron, Duplex Steel, Bronze |
| Disc Material | Stainless Steel or compatible material |
| Seat Type | Metal-to-Metal or Soft Seat |
| Design | Compact and lightweight with a wafer-thin design for space-saving |
| Flow Direction | Horizontal and vertical flow (upward flow only for vertical) |
| Size Range | Typically from 2 inches to 36 inches |
| Pressure Rating | ANSI Class 150, 300, 600, or higher |
| Connection Type | Wafer-style, fits between flanges |
| Advantages | Compact design, low weight, low maintenance, and cost-effective |
| Applications | Water supply, HVAC systems, chemical processing, oil & gas |
| Standards | API 594, ASME B16.34, ISO 5752 |
Wafer Check Valve vs Swing Check Valve: Why Choose Wafer Check Valves?
Although both types are check valves with the purpose of preventing backflow through a pipeline, they are constructed and work in different ways. Here are the reasons why wafer check valves are preferred more often than other types of industrial systems as the valves have compact designs.
| Feature | Wafer Check Valve | Swing Check Valve |
|---|---|---|
| Design | Compact, fits between flanges | Larger, bulkier, requires more space |
| Installation | Simple and quick, requires fewer components | More complex, requires additional fittings |
| Pressure Drop | Minimal | Slightly higher due to the swinging mechanism |
| Durability | High, fewer moving parts | Moderate, prone to wear over time |
| Applications | Ideal for tight spaces and high-pressure systems | Best for low-pressure systems with more space |
The use of the wafer check valve is preferred in industries such as water treatment, oil and gas industries and HVAC industries in that these industries are very sensitive in regards to space and weight.
Why Source Wafer Check Valves from China?
China has emerged as a leading producer of high-quality industrial valves and especially wafer check valves, because of its enhanced manufacturing skills, ability to use cheap labor, and quality assurances. There are the following benefits of sourcing from credible Chinese manufacturers like RUFSUPPLY:
1. High-Quality Manufacturing
- Most manufacturers in China incorporate modern technology and modern manufacturing facilities for the construction of valves with various international standardizations including ISO, API and CE certifications.
- For instance, the choice of stainless steel, carbon steel, ductile iron is done deliberately with an aim of achieving optimum serviceability and dependability of textile machinery.
2. Competitive Pricing
- Some of these reasons include the fact that ADC manufacturers are based in China, which has an efficient supply chain and large production capacities, which enables them to offer affordable prices without having to compromise the quality of its products.
- Purchases in bulk form from China reduce the cost implication of purchase for buyers all over the World.
3. Wide Variety of Products
- Various Chinese manufacturers manufacture wafer check valves, including double-door wafer check valves, flanged wafer check valves, and others in specific sizes such as 2, 4, 6, and 8 inches.
4. Expertise and Customization
- Over the years, like many other companies in China, suppliers such as RUFSUPPLY have offered customized solutions to meet customers’ requirements.
5. Strong Export Network
- Industrial valves are a significant production category in China that enjoys an extensive export market all over the World. Thus, manufacturers such as RUFSUPPLY are always guaranteed to deliver the products to any country at the agreed time.

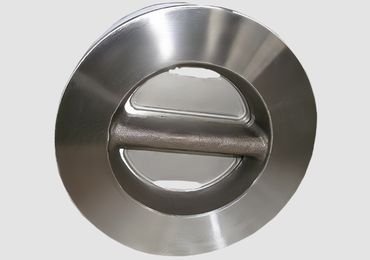

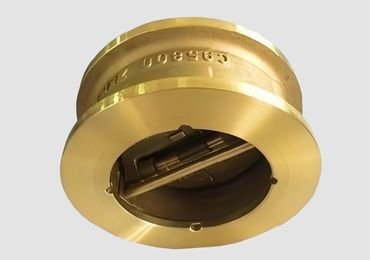

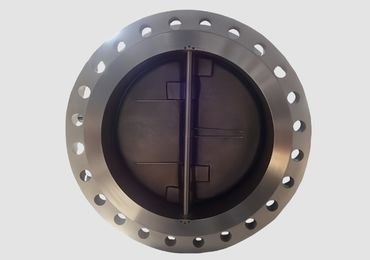

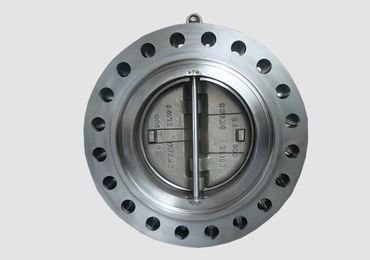

Different Types of Wafer Check Valve
A wafer check valve is a compact, lightweight valve designed to allow flow in one direction and prevent backflow, installed between flanges.
Send your Inquiry on RUFSupply Wafer Check Valve Now
- Why Choose RUFSupply
- Technical Data
Custom Manufacturing
Tailored solutions to match your exact specifications, from materials to pressure ratings.
Rigorous Testing
Every valve is tested for performance, durability, and safety before shipping.
Expert Technical Support
Our team of engineers is available to help you select the right valve for your application.
Competitive Pricing
Direct manufacturing ensures no intermediaries, saving you costs.
Global Standards Compliance
Our valves meet API, ASME, DIN, JIS, and GOST standards, ensuring reliability worldwide.
Request a Quote Today!
Need a reliable trunnion ball valve for your critical operations? RUFSupply is your trusted partner for durable and high-performance solutions.
Technical Data
Send Inquiry
What Is a Wafer Check Valve?
A wafer check valve is generally a check valve that is used to prevent the back flow of fluids in the pipe line. Due to its small size, it is suitable for installation at the flanges where space could be a limiting factor. In comparison to other leavers designs such as the swing check valves, the wafer check valves are slender and more effective for purposes of industrial use.
Key Features of Wafer Check Valves
The provided specifications of the wafer check valves are as following:
- Compact Design: Saves space and reduces weight in pipeline systems.
- Durable Construction: Built to withstand high-pressure and high-temperature environments.
- Low Pressure Drop: Ensures efficient fluid flow with minimal resistance.
- Cost-Effective: Offers excellent performance at affordable prices.
- Versatile Applications: Suitable for water, oil, gas, and steam pipelines.
Types of Wafer Check Valves Available from China
Currently, RUFSUPPLY manufactures various kinds of wafer check valves which are used in many industries all over the world. Below you will find the most typical definitions:
1. Double Door Wafer Check Valve
Comes with two semi-circular halves that are sprung apart to allow forward flow and shut immediately to minimize the reverse flow.
Popular in HVAC systems and water treatment plants.

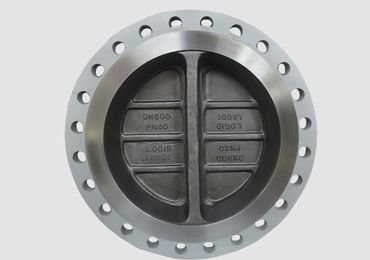

2. Flanged Wafer Check Valve
Having flanges at both the ends in order to provide easy connection with other pipe elements or to have an additional layer of seal.
Commonly used in high-pressure systems.
3. Single Disc Wafer Check Valve
A lightweight and cost-effective option with a single disc mechanism.
Suitable for standard flow applications.
4. Custom Sizes
It comes in 2” 3”, 4”, 6”and the 8” sizes that would fit in the varied pipe sizes.
As for the sizes, normal sizes can be produced, but if you have special project demands, it can also be made in accordance with your request.
Wafer Check Valve Installation: Best Practices
Ensure that your wafer check valve is well fixed to get the best out of it and to ensure it lasts seasons. Here are some guidelines that should be followed to have a positive outcome of the installation:
Stept 1.Inspect the Pipeline
It is mandatory that the pipelines are to be free from any dirt, sand or any other unwanted stuffs.
Step 2.Select the Correct Orientation
Position the valve sync with the flow direction arrow facing in the same direction as the flow.
Step 3.Position the Valve Between Flanges
Choose the correct grades of gaskets that will avoid chances of leakage of the liquid being transported.
Step 4.Tighten Bolts Evenly
Tighten each of the flange bolts with a level of pressure that does not apply unequal pressure on the valve.
Step 5.Test the System
Check the functionality of the valve and whether it is working by opening and closing the valve and also whether the valve is tight enough.
Why Choose RUFSUPPLY: A Leading Wafer Check Valve Manufacturer in China
With no doubts, RUFSUPPLY is among seven most reliable valve companies in China that specializes in manufacturing industrial valves. Here are the reasons why customers in the global market trust us:
1. Superior Quality
All the valves are produced of premium-grade materials that guarantee the use of valves for a long time.
2. Affordable Pricing
Since we operate on such a low budget, we are indeed able to give some of the most affordable price in the market but of equal quality.
3. Comprehensive Product Range
We have both double door wafer and(referred to as) flanged for every application they are needed.
4. Customization Options
We also assure our clients flexibility in size, if they wish to have a certain size of the windshield; we shall deliver it.
5. Global Export Expertise
Having been in the export business, especially to countries both near and far for a number of years, we guarantee timely and efficient delivery.
Applications of Wafer Check Valves
The wafer check valves produced in China are applicable in wide areas as follows:
Water Treatment
In filtration and pumping systems, backflow is a phenomenon that places a lot of emphasis on prevention due to the possible effects it poses on the quality of the fluid being conveyed in the system.
Oil and Gas
Contribution to proper flow control of pipelines as well as refinery processes.
HVAC Systems
Functional application of heating and ventilation systems in regulating airflow.
Chemical Processing
Preventing backpressure in corrosive atmospheres to check on the equipment.
Power Plants
Prospects in controlling flow high-temperature steam systems.
A wafer check valve is a type of valve used to stop the back flow in the pipelines; the fluid is expected to flow in one particular direction. These factors make it suitable to be adopted by systems which may have limited space. It is commonly employed in industrial equipment and offers dependable operation particularly in water, oil, as well as the gas, and Hepa atmosphere conditioning equipment.
Double door wafer check valves also have two spring loaded disc which closes rapidly thus minimizing water hammer. Because of their design, they are space saver and can be placed even in the corner or in the kitchen with no problem. They are widely applied in the pipelines where low pressure drop rates and control of the medium are needed.
The flanged wafer check valves provide consistent sealing in order to eliminate leakage between the pipelines. They are easy to install and therefore recommended for high pressure systems. Because their IVR is strong and generally have backflow resistant property, they are suitable for use especially in chemical processing, oil and gas, and water treatment industries.
It may also require cleaning of the valve and examination of the seals so as to identify signs of wear. System alignment during the installation process and further tests would help avoid problems with the equipment’s functioning. These measures enable the increase of service life and efficiency of the waver check valves used in industrial facilities.
These check valves are particularly applicable in water treatment, HVAC, chemical, oil and gas applications. These features include their compact size, low pressure drop, and high reliability of such check valves for avoiding backflow in sensitive processes.
The wafer check valve is small and thin as is actuated between two flanges, while the swing check valve is relatively large and thicker. Another distinguishing criterion of the valves is its type such that; While the wafer valves are designed for high pressure, the swing valves on the other hand are mostly used in low pressure horizontal pipeline.
Yes, the wafer check valves that we offer are well made to operate in high pressure conditions. Some of them are constructed the use of stainless steel which makes them strong and fit to be used in challenging conditions such as power station and oil pipelines.
China has an advantage in producing the manufacturing of the wafer check valve through the efficient manufacturing processes, cheap labor, and excellent standardization of their products. Pricing of these valves can be very competitive and in most cases they allow customized productions, this has made the Chinese manufacturers very popular in the global markets.
In HVAC system application, wafer check valve is responsible to control the airflow aptly and also to avoid back pressure. Due to their thin profiles, they fit narrow applications and due to low pressure drop they are very energy efficient thus an important element in heating and ventilation.
The several types of check valves include incomes of stainless steel, ductile iron, and bronze. These materials promote the durability and resistance to corrosion of the valves to match the chemical and water systems industries among others.
