Premium Slab Gate Valves: API 6D High-Performance Solutions from RFUSUPPLY
If you run an industrial pipeline and need reliable gate valves that will last for a long time, come to RFUSUPPLY. Look no further. RFUSUPPLY focuses on providing top-quality slab gate valves exactly what different types of industries like oil and gas, petrochemicals, and water treatment require. Our valves are made carefully and meet strict engineering requirements to work well, last longer than basic models, and come with user-friendly features.
RFUSUPPLY, a top industry valve supplier, partners innovative designs, top-quality manufacturing, and personalized customer service to help you pick the perfect valve that fits your requirements. Let us help you find API 6D-approved valves, furnish blueprints, and explain how slab gate valve differs from wedge gate valve.
Slab Gate Valve Specification
| Specification | Details |
|---|---|
| Valve Type | Slab Gate Valve |
| Design Standard | API 6D / ASME B16.34 / ISO 14313 |
| Size Range | 2” to 48” |
| Pressure Class | ANSI Class 150, 300, 600, 900, 1500, and 2500 |
| Body Material | Carbon Steel (A216 WCB), Stainless Steel (A351 CF8M), Duplex Steel, etc. |
| Trim Material | 13Cr, 316 SS, Inconel, Monel, or Tungsten Carbide |
| End Connection | Flanged (RF/RTJ), Butt Weld (BW), or Threaded (NPT) |
| Operation | Manual (Handwheel), Gear, Electric Actuator, Hydraulic Actuator |
| Sealing Type | Metal-to-Metal or Soft Seated |
| Seat Material | PTFE, Nylon, PEEK, or Metal |
| Stem Type | Rising or Non-Rising Stem |
| Bonnet Type | Bolted Bonnet or Pressure-Sealed Bonnet |
| Temperature Range | -50°C to 500°C (-58°F to 932°F) |
| Flow Direction | Bidirectional |
| Pressure Testing Standard | API 598 / ISO 5208 |
| Face-to-Face Dimension | ASME B16.10 |
| Fire Safety Standard | API 607 / ISO 10497 |
| Antistatic Design | Yes |
| Corrosion Protection | Coated with Epoxy / Polyurethane / Fusion Bonded Epoxy (FBE) |
| Applications | Oil & Gas, Petrochemical, Refinery, Power Plants, Water, and Slurry Lines |
What Is a Slab Gate Valve?
A slab gate valve is a specific type of gate valve in which the gate /slab is horizontally disposed in the fluid’s flow. These values feature a soft seat and low pressure loss and can be commonly found in industries that need to regulate the flow and pressure their products exert.
Key Features of Slab Gate Valves:
Parallel Slab Gate Design: Unlike wedge gate valves, slab gate valves have an evenly shaped gate through which a tight seal fits against the valve seats.
Full Bore Flow: Because the flow path is unobstructed, there is little turbulence and pressure loss, making them perfect for high flow rates.
Tight Sealing: The floating gates also enable the best sealing in situations where pressure is likely to vary, such as at high pressures.
Versatility: Appropriate in varying processing environments, including upstream hydrocarbon pipelines and water treatment works.
Slab gate valves are especially appreciated for their performance characterizing the resistance of these valves to abrasive or corrosive media, as well as easy and trouble-free operation within conditions which may be hardly considered optimal.
Slab Gate Valve vs Wedge Gate Valve: Which One Should You Choose?
In the choice of the valve for installation, the differences in the slab gate valves and the wedge gate valves should be comprehended. Both types have their benefits, the selection depends on the application of concern.
Comparison of Slab Gate Valve and Wedge Gate Valve
| Feature | Slab Gate Valve | Wedge Gate Valve |
|---|---|---|
| Design | Flat slab with parallel sides | Tapered wedge for sealing |
| Sealing | Excellent for high-pressure applications | May require more adjustments over time |
| Pressure Drop | Minimal due to full bore design | Slightly higher |
| Applications | Ideal for high-pressure and high-flow systems | Suitable for general-purpose applications |
| Ease of Maintenance | Simple design, easier to service | Can be more complex to maintain |
If in your system demand is low pressure drop and high sealing efficiency particularly at high pressure then slab gate valve is the most appropriate. In some general application, it may be possible to get away with just a wedge gate valve. Still unsure? The team at RFUSUPPLY is ready to help you make a decision, let us know what you are looking for.

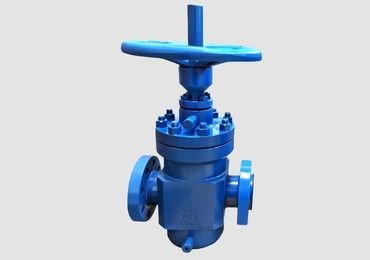

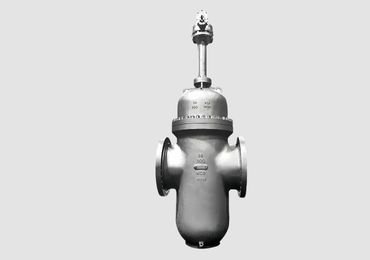

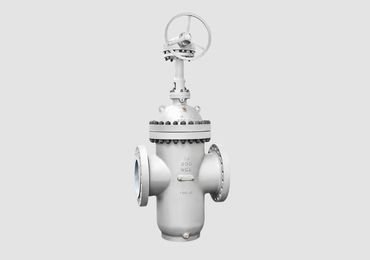

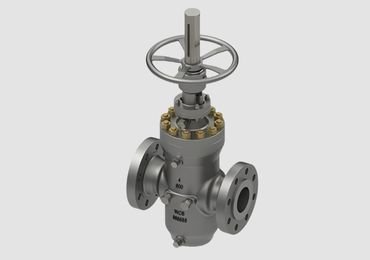

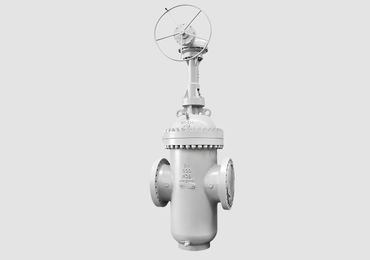

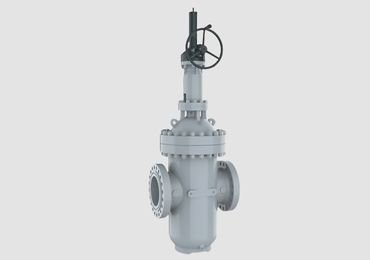

Different Types of Slab Gate Valve
A Slab Gate Valve includes a flat, slab-style gate that controls the flow has the tight seal and is good for high pressure, temperature applications in oil and gas industry.
Send your Inquiry on RUFSupply Slab Gate Valve-API 6A Or 6D Now
- Why Choose RUFSupply
- Technical Data
Custom Manufacturing
Tailored solutions to match your exact specifications, from materials to pressure ratings.
Rigorous Testing
Every valve is tested for performance, durability, and safety before shipping.
Expert Technical Support
Our team of engineers is available to help you select the right valve for your application.
Competitive Pricing
Direct manufacturing ensures no intermediaries, saving you costs.
Global Standards Compliance
Our valves meet API, ASME, DIN, JIS, and GOST standards, ensuring reliability worldwide.
Request a Quote Today!
Need a reliable trunnion ball valve for your critical operations? RUFSupply is your trusted partner for durable and high-performance solutions.
Technical Data
Types of Slab Gate Valves
RFUSUPPLY offers slab gate valves for various companies that are unique to their needs. Here’s a closer look at the types available:
1. Conduit Slab Gate Valves
This is a low-pressure drop design for systems with low-pressure drop requirements.
Full bore design minimizes turbulence and facilitates pigging operations.
It is also in oil and gas transmission lines.
2. Parallel Slab Gate Valves
A floating slab that adapts under pressure change for a tight seal.
Suitable for applications where high pressure encapsulation and precise flow control are required.
3. Expanding Slab Gate Valves
Using an expanding mechanism for improved sealing, it combines the advantages of slab and wedge gate valves.
Ideal for use where pressure and temperature are high.
4. Custom Solutions
Need something specific? Custom slab gate valve designs from RFUSUPPLY is based in your drawings and your needs, putting a cigarette on fire ever so gently. We have different solutions for different people.
Benefits of Using Slab Gate Valves
Understanding the properties of valves and proper selection Criteria for valves in pipelines can make a big difference in performance and safety. Here are some of the key benefits of slab gate valves:
Minimal Pressure Drop: Their design is fully developed, which results in minimal fluid turbulence and energy loss.
Enhanced Durability: Designed to work under high pressure, temperature, and corrosive services.
Improved Safety: Anti-leaking makes it secure and optimum for performance.
Versatile Applications: Applicable for use in oil and gas piping systems, water treatment systems, and various petrochemical processes.
Ease of Maintenance: It means that there is easy access for simple inspections, retention, and replacement.
Installation and Maintenance Tips for Slab Gate Valves
A slab gate valve is one of the most important tools in any system for controlling water flow, but it requires installation and maintenance tips.
A slab gate valve is another type of valve that calls for proper installation coupled with proper maintenance to serve its optimum time and function effectively. Follow these best practices:
Installation Tips:
Inspect the Valve: For those rare occasions when it is to be installed, be sure to check for any damages or stains that could impair the tool’s efficiency.
Ensure Proper Alignment: This results in misalignment, which may cause uneven wear of the contact faces and lower the sealing efficiency whenever the unit is installed.
Use Recommended Tools: Install the tools using the correct methods as prescribed by the manufacturer and never exceed the torque specifications mentioned by the manufacturer.
Test Before Use: Perform a pressure test to check sealing and functional efficiency.
Maintenance Tips:
Regular Inspections: Inspect the valve seats and the gate for signs of wear, corrosion, or damage.
Clean Periodically: Clean around and near the valve to ensure that nothing hampers its operation.
Replace Worn Parts: Regular replacement of seals, gasket, and other components saves a lot of money as well as time needed to replace them.
Professional Servicing: In case while repairing if one comes across some scenario that he cannot solve then it is recommended to consult a professional or else contact RFUSUPPLY.
When it comes to slab gate valves, extra care must be taken to achieve optimal performance and long life for the structures. Powerful maintenance strategies incorporate the above tips to guarantee that the slab gate valves give maximum performance for years.
Applications of Slab Gate Valves
Slab gate valves are in demand in almost all industrial application sections because of their practical benefits, sturdy nature, and high levels of efficiency. Here are some common applications:
Oil and Gas:
Transportation pipelines for crude oil and natural gas and pipelines for products derived from the oil and natural gas business.
The two include offshore and onshore drilling operations.
Petrochemical:
The attempt to control the flow of chemicals in the refinery and processing plants.
Water Treatment:
Who is involved in the process of managing the flow of clean and wastewater in the industries and municipalities?
Power Generation:
During cement production and manufacturing, steam and water flow are controlled in power plant turbo generators and turbine pumps.
Whatever the use, RFUSUPPLY slab gate valves have been designed and developed to perform under the most strenuous operating conditions.
Why RFUSUPPLY Is the Right Choice
At RFUSUPPLY, we are not just the supplier to your business but an individual stakeholder in its growth. We pride ourselves on embracing high quality, innovation, and efficient customer service to meet the expectations of the market. Here’s what you can expect when you choose RFUSUPPLY:
Extensive Inventory: We offer a wide range of slab gate valves that suit all industries and size requirements.
Fast Turnaround: We also use efficient manufacturing and distribution to guarantee that your orders are delivered in the shortest time possible.
Expert Support: For more information about valves or advice on the right type or size for your industrial application, call our team of experts.
Competitive Pricing: Our expenses are low, while our products are premium quality valves that are reasonably priced in the market.
Call to Action: Get Your Slab Gate Valves Today!
Often, valve inefficiencies can really put a damper on your operations and this needs to be avoided. This is RFUSUPPLY – your best option for premium slab gate valves that can give you optimal productivity, durability, and savings.
Shop Now | Request a Quote
Having trouble in selecting the right valve for your system? Contact our team of experts today. Choose RFUSUPPLY as your partner when it comes to all your industrial valve requirements.
Slab gate valves are well suited for abrasive services because of the fact that it has a full port structure which does not allow water hammer within the valve body. The flat slab gate provides a very close shutoff; this type of seat materials such as tungsten carbide or Inconel trims are very immune to wear from abrasive media hence these types of valves are very valuable in harsh conditions.
A slab gate valve because of the full-bore body design does not have any restrictions within the flow path to the valve that causes turbulence and pressure drop. This helps in minimizing energy wastage and thereby makes the slab gate valves as an ideal choice for the pipeline systems where constant flow rates are important as well as less pumping expenses.
Yes, slab gate valves can be customized according to customers’ demands further in different industries. These may include the material of construction (such as duplex for marine atmosphere or stainless for chemical environment, pressure, body and bonnet connections, and actuator type. Some common industries where enhanced versions of normal equipment are likely to be desired include oil and gas, the petrochemical industry, and water treatment facilities.
Slab gate valves employed in high temperature applications utilize some materials such as stainless steel or Inconel that do not deform when subjected to high temperatures. Also, direct or metal-to-metal sealing make it possible to have a steadfast movement without deformation so it can be used in other applications such as in the steam pipeline or power plant.
Samples of the factors that one needs to weigh when choosing a slab gate valve include the following：
Pressure Rating: Check whether they are appropriate for the expected operating pressure of your system like Class 150, 300, and other classes.
Material: Choose corrosion-resistant materials for harsh environments or abrasive media.
End Connection: One can choose flanged, threaded or butt-weld end connections depending on the design parameters of a pipeline.
Operation Method: Determine system automation requirements to select between manual, electric, or hydraulic operations.
Slab gate valves are normally used for circumstances where pressure is very high because they are bidirectional, and they are also very resistant to corrosion. Materials such as duplex stainless steel are utilized in the construction of the pipes to enable them to handle saltwater conditions; the sealing also does not allow leakage despite the changes in pressure that is characteristic of subsea activities.
Slab gate valves also offer protection to the pipeline and allow the pipe to be shut off in a safe manner without leakage. The tight sealing ability besides its compliance with the API safety standards help to reduce the risk of free flowing hazardous fluids. Other features which also add to operation safety include anti-blowout stem designs as well as fire-safe features.
That is why the resource consumptions and thus the lifespan of a slab gate valve depends on material, frequency of maintenance, and conditions of service. Slab gate valves with tungsten carbide trim or even the higher-grade material of Duplex steel can last up to 10–20 years with proper maintenance even when subjected to very hostile conditions.
Slab gate valves are commonly used for slurry lines as the valve mod is full bore that reduces the possibility of clogging while the slab type of construction makes it resistant to wear out by slurry. The floating slab gates can accommodate pressure changes inside and outside the water and are therefore very suitable for mining and mineral processing industries.
Slab gate valves have a simplicity in that they come with a full bore which makes it able to allow pigging operations to be carried out. This results in ease of passage for the pigs or cleaning devices to pass through the pipelines without blocking hence minimizing on thetimes the pipeline will be closed for maintenance.
