Cast Steel Gate Valve: High-Performance and API 600 Compliant
In pipeline operation or utilization of industrial-grade flow regulation equipment, cast steel gate valves are what you go for. Designed for reliability and accuracy, our valves satisfy the industry requirements and could be API 600 type, which makes them highly suitable for extreme working conditions. If you are looking for valves for a competitive price or a special size or pressure class, such as class 150, class 300, class 600, class 900, class 1500 or class 2500, we have the perfect valve for you at RUFSupply.
Cast Steel Gate Valve Specification
| Parameter | Description |
|---|---|
| Type | Gate Valve |
| Material | Cast Steel |
| Size Range | 2″ – 48″ (or as per manufacturer specifications) |
| Pressure Rating | ANSI Class 150, 300, 600, 900, 1500, 2500 |
| Connection Ends | Flanged (RF/FF/RTJ), Butt Weld |
| Operation | Handwheel, Gear Operated, Electric Actuator, Pneumatic Actuator |
| Body Design | Bolted Bonnet, Pressure Seal Bonnet |
| Trim Material | 13% Cr, F304, F316, Monel, Stellite, or other materials based on application |
| Standards | API 600, ASME B16.34, BS 1414, ISO 10434 |
| Face-to-Face | ASME B16.10 |
| Testing Standard | API 598 |
| Temperature Range | -29°C to 425°C (depending on material and pressure class) |
| Application | Oil & Gas, Petrochemical, Power Generation, Water Treatment, etc. |

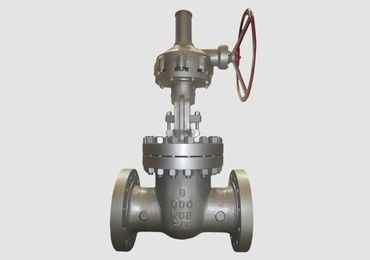

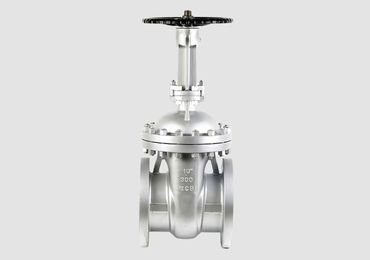

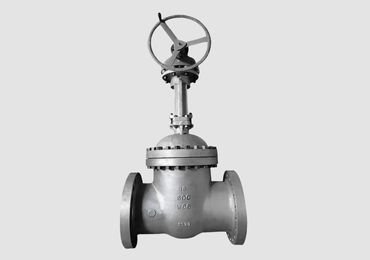

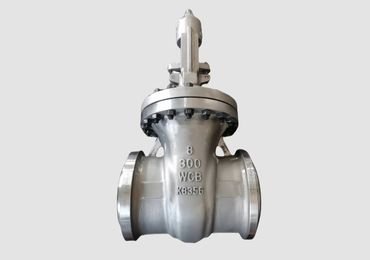

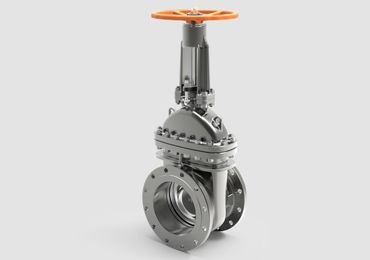

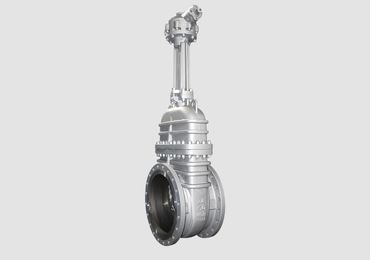

Different Types of Cast Steel Gate Valve
A cast steel gate valve is used to start or stop the flow of liquids in pipelines, made from durable cast steel for high-pressure and temperature applications.
Send your Inquiry on RUFSupply Cast Steel Gate Valve Now
- Video
- Why Choose RUFSupply
- Technical Data
Custom Manufacturing
Tailored solutions to match your exact specifications, from materials to pressure ratings.
Rigorous Testing
Every valve is tested for performance, durability, and safety before shipping.
Expert Technical Support
Our team of engineers is available to help you select the right valve for your application.
Competitive Pricing
Direct manufacturing ensures no intermediaries, saving you costs.
Global Standards Compliance
Our valves meet API, ASME, DIN, JIS, and GOST standards, ensuring reliability worldwide.
Request a Quote Today!
Need a reliable trunnion ball valve for your critical operations? RUFSupply is your trusted partner for durable and high-performance solutions.
Technical Data
Why to Choose Cast Steel Gate Valves From Us?
At RUFSupply, we are fully aware that superior quality and performance are inalienable. That is why our cast steel gate valves are made with great care: they are durable, reliable, and easy to operate. Here’s what sets us apart:
Solid Wedge Design: Enhances the provision of a leak-tight seal and guarantees stability in high-pressure applications.
Bolt Bonnet Construction: Built for performance and maintenance, ensuring that any mechanical or construction change is easy to accomplish.
Outside and Yoke (OS&Y) Configuration: Enables quick identification of the valve position and unhampered use of the product.
Versatile Design: Comes in different dimensions, sizes, and pressure ratings, inclusive of classes 150, 300, 600, 900, 1500, and 2500.
Large Sizes Available: Meant for pipelines of all classes, including large-size valves for robust activity environment requirements.
Our valves are used worldwide and are valued for the high reliability and operating efficiency of each product. Our cast steel gate valves for oil and gas pipelines, water treatment, and other services provide the reliable performance our customers need.
Specifications That Meet Every Need
It is, therefore, necessary to be fully conversant with the details of a cast steel gate valve. Here are the key specifications to consider when making your purchase:
Material: Strong and durable cast steel of a high grade.
Wedge Type: Durability, which results from the solid wedge design intended to deliver a foolproof seal.
Bonnet Type: Bolt bonnet construction enhances the strength of the valve and makes it easy to maintain.
Sizes: Many dimensions are needed for your pipeline needs, together with valves intended for large pipelines.
Pressure Classes: Select from class 150, class 300, class 600, class 900, class 1500 or class 2500, which are general options available in the industry.
Configuration: OS&Y outside screw yoke to maintain clear vale position.
Standard Compliance: Fully adherent to API specification 600 and other specifications as Far as the International market is concerned.
Manual Operation: Gleamed for easy and seamless type of control.
Don’t know how to choose the proper size, type of wedge, or pressure class? Our product specialists are always available to recommend and advise you at each stage of the process.
Benefits of Cast Steel Gate Valves
Simply put, if you opt for a cast steel gate valve, you are opting for a product that is built to last. Here’s why they’re a top choice for professionals:
Superior Durability: High wear resistance, corrosive deterioration and high/low temperature.
Precise Control: Can actually admit a flow control system with a significant level of precision while at the same time causing a reasonable restriction to the media passing through it.
Low Maintenance: These valves are easy to maintain due to the bolt bonnet design and a solid wedge.
Cost-Effective: Although it is initially more expensive than other cutting tools, its life cycle cost is low.
Versatility: It comes in size range and large-size valves for use in different industries around the world.
How to Purchase the Proper Cast Steel Gate Valve
When it comes to various cast steel gate valves at RUFSupply, we enable you to choose the most suitable one for you. Discover our wide range of valves for sale in different sizes, pressure ratings and standards. Irrespective of whether you require a new valve or if you are undergoing a new installation, we are your solution.
Affordability That Does Not Suffer Quality Standards
We know that price matters. That is why with most of our cast steel gate valves we provide very attractive prices without compromising quality. We offer economical valves whether used in low budget projects or when you require features such as solid wedge designs, bolt bonnet constructions, or OS&Y requirements, our valves are great value for only a few pennies more.
Ready to Buy? Contact RUFSupply Today
Pipeline performance is not something that should be left to guess. Fortunately, find the right cast steel gate valve for any application at RUFSupply. Please do not hesitate to contact us, and our professionals will show you the sizes, specifications, and prices that are appropriate for you.
Finding the Right Cast Steel Gate Valve for Sale
Our products range from the RUFSupply company offers all the clients an opportunity to select the proper cast steel gate valve that will suit their requirements. Visit our shop page where we showcase the valves for sale with different sizes, pressure ratings and standards. If you need a replacement valve or a new system installed, then look no further.
Competitive Prices Without Compromising Quality
Our products range from the RUFSupply company offers all the clients an opportunity to select the proper cast steel gate valve that will suit their requirements. Visit our shop page where we showcase the valves for sale with different sizes, pressure ratings and standards. If you are in need of a replacement valve, or if you are having a new system installed then look no further.
Ready to Buy? Contact RUFSupply Today
No need to leave the calculation of your pipeline performance to guess work. Find the right cast steel gate valve for your need in RUFSupply. If you need assistance on stress, size, specifications and the right price, then our team is willing to assist.
Call us today or browse our catalog to explore:
-
- Class 150 cast steel gate valves
- Class 300 cast steel gate valves
- Class 600 cast steel gate valves
- Class 900 cast steel gate valves
- Class 1500 cast steel gate valves
- Class 2500 cast steel gate valves
- Solid wedge gate valves
- Bolt bonnet cast steel gate valves
- Outside and yoke (OS&Y) configurations
- Valves compliant with API 600 standards
- A wide range of dimensions and large sizes
Take the next step now — get a quote or place your order today!
Cast steel has high strength, durability, and resistance to high pressure and high temperature, which make it the best choice in an industry field. On the other hand, cast steel exhibits superior mechanical strength, such as high tensile strength and profile resitsance to obduct to final solidity crack omits. It is also more economical to exotic alloys like Inconel or Monel, economical performance providesBalance.
Operating pressure of the caster steel gate valve should always be in harmony with pressure classification of the pipeline it will be used in. For example:
- Class 150: Suitable for low-pressure systems.
- Class 300: Ideal for medium-pressure applications.
- Class 600 and above: Designed for high-pressure environments, such as in power plants or oil refineries.
Therefore, there is a need for the pressure class selection from the system specification and operating conditions of the equipment to be used.
Rising Stem Gate Valves: The stem travels up and down as the valve is open or closed, providing a clear visual view of the valve. OTHER POSITION. These are typically employed in above-grade applications.
Non Rising Stem Gate Valves: The stem does not move, the gate is inside moving. These are perfectly suited to tight and limited access areas including underground voids and poor sightline applications.
Cast steel gate valves should usually not be used for throttling purposes because the gate design will cause uneven wear and turbulence when the valve is partially open. If precise flow control is required, use at globe valve or another valve being setup for throttling. Gate valve is the best suited for full on or full off positions.
Key maintenance and inspection points include:
Gate and Receive condition: Look for put on or harm that may disqualify sealing. Stem and Threads: Check for any stiffness or corrosion and debris gathering. Body and Bonnet: Check for cracks, leaks or any signs of rust. Packing and Gaskets: Replace deteriorated parts for a secure leak-proof seal. Regular maintenance guarantees dependable operation and keeps the valve running for a long time.
Cast steel gate valves are designed for extreme operational temperatures, hot and cold, based on material grade and trim. For example:
Carbon Steel: Suitable for moderate temperatures (-29°C to 425°C).
Low-Temperature Carbon Steel (LTCS): Ideal for cryogenic applications.
Alloy Steel: Recommended for very high temperatures beyond 425°C.
Proper material choice ensures best performance under hard service.
Cast steel gate valves especially used in the product:
Oil and Gas: For single-bore pipeline isolation in treatment applications on-land, off-land, and housings in online, off-line, and double-bore/replacement applications, online isolation of jumpers and tie-in of flowlines, for isolating pipelines in upstream, midstream, and downstream operations.
Power Plants: To control the considerable steam and cooling systems used in thermal and nuclear power stations.
Water Treatment: For large-scale flow control in treatment plants and distribution systems.
Chemical Processing: For handling corrosive or hazardous fluids.
Their hardiness and dependability allow them to be applied for lots of industrial makes use of.
Proper installation steps include:
Pipeline Preparation: Clean and Debri-free pipe.
Alignment: Place the valve properly in the pipeline to prevent undue stress on flanges or welds.
Torque Control： Tighten flange bolts in an even pattern to prevent leakage or alignment issues,
Verification: Perform pressure tests on the installation to confirm that all sealing and operating properties are correct.
Steps like this will keep the operation trouble-free and reliable for long.
Yes actuator can be fitted to a cast steel gate valves for automation. Common actuation methods include:
Electric Actuators: Suitable for precise control in industrial processes.
Pneumatic Actuators: Ideal for fast and efficient operation in high-pressure systems.
Hydraulic Actuators: Applied to heavy-duty applications such as requiring high torque.
Automation increases efficiency and enables remote operation in sophisticated systems. Automation allows for more efficient, vigilant controls of equipment, enhancing, in a dual sense, the post objective Equipment performance.
Cast steel gate valves have a solid wedge design to provide the following:
Leak-Tight Seal: Ensures reliable isolation even under high pressure.
Durable: Anti-deformation and resisted tear-off assure long-term results.
Versatility: Suitable for both horizontal and vertical installations.
This design is especially good for systems subject to floating-pressure- and- floating-ambient temperature.
